Introduction to GIT and SourceTree

Git is an open source Version Control software to handle from small to very large projects with speed and efficiency. For documentation you can see the "https://git-scm.com/doc" link.

I used "SourceTree" as frontend in my local machine. It's a GUI for GIT and also a free software which you can download from "https://www.sourcetreeapp.com" link. The Graph at the Left give pictorial representation the history of the code. The description shows

The key concepts of GIT are as follows:

Remote Master:

This is main repository where the code is stored.  It has the latest merged code.

Local Master:

A copy of all code from remote master is stored in Local. Every developer has to set this in order to do the development.

Clone:

=> Clone option is to get a local copy from remote repository

=> Sample screenshot shown below

Pull changes from a remote repository (Git)

=> Click on the local branch you want to work or local master to get the latest changes from REMOTE Master.

=> Click on Pull button top.

See the link for further details. https://confluence.atlassian.com/get-started-with-sourcetree/pull-changes-from-a-remote-repository-git-847359111.html

Commit and push a change (Git)

=> Click on Commit button on top

=> Select to files you want commit
=> Click on Stage option.
=> All the selected files will be moved to Stage

=> Give the comments for Commit and enable "Push changes immediately to -". As shown below.

=> The changes will be saved and pushed to Remote.

Create a branch (Git)

=> Click on Branch button on top

=> Give new branch name as shown below

=> It will be created locally

=> Your changes will be tracked & saved in the newly created branch.

See the link for further details (it also contains creation and push a branch to the remote repository). https://confluence.atlassian.com/get-started-with-sourcetree/commit-and-push-a-change-git-847359114.html

Merge changes from one branch to another (Git)

You can merge the changes from other branches. Please see the link for further details

https://confluence.atlassian.com/get-started-with-sourcetree/merge-changes-from-one-branch-to-another-git-847359121.html

To setup a repository please see the following link. This explains various scenarios of setting up a repository.

https://confluence.atlassian.com/bitbucket/set-up-a-repository-877174034.html

SQL server - How to see the tables, columns and views

How to see the tables, columns and views from SQL server Database?

This Blog is for SQL beginners. The approach is to use “INFORMATION_SCHEMA” view to fetch list of tables/columns/views. Please see the below details for further details.

1.       To view list of all the tables using below command.

SELECT                 *             FROM                   INFORMATION_SCHEMA.TABLES



          SP_HELP "INFORMATION_SCHEMA.COLUMNS"

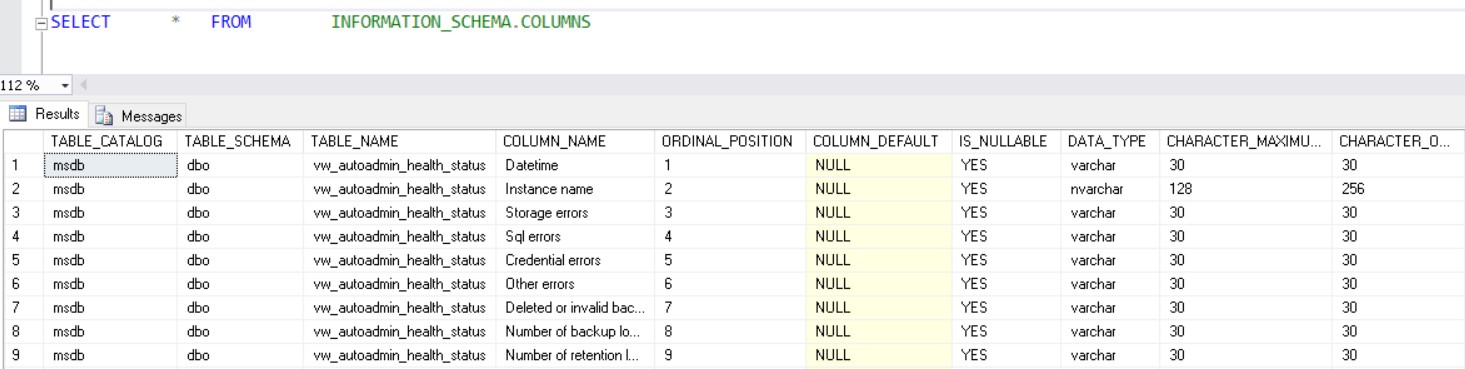

2.      To see list of fields of a table, use “INFORMATION_SCHEMA.COLUMNS” view. You can also use "SP_HELP '<tablename>' ", but the problem I faced with SP_HELP is the data type of few columns are not correct.

SELECT                 *             FROM                   INFORMATION_SCHEMA.COLUMNS



SP_HELP "INFORMATION_SCHEMA.COLUMNS"



3.      To see list of views, use “INFORMATION_SCHEMA.VIEW” view. You can see view script by using “VIEW_DEFINITION”.

   SELECT                        *             FROM                   INFORMATION_SCHEMA.VIEWS



SP_HELP "INFORMATION_SCHEMA.VIEW"





Please refer below link to understand more about “INFORMATION_SCHEMA” view.

https://docs.microsoft.com/en-us/sql/relational-databases/system-information-schema-views/system-information-schema-views-transact-sql

Simple SQL Trips and Tricks (Formatting)

I found simple SQL Tips and Tricks which helped me to make the changes quickly and analyze issues.

• Always give the database name in the script. It should be at the top of any SQL script file.

USE [DBName]
GO
;

• Use the [SchemaName]  and [TableName] in your SQL commands with square brackets ("[]") for fields, schema and table. For example

SELECT [Field1] , [Field2], [Field3] FROM  [dbo].[Table1];

 UPDATE [dbo].[Table1]     SET [Field1]  = 'NewValue'   WHERE [Field2] = 'Condition';

• Give Tab space between each word and also align vertically as shown below:

 UPDATE [dbo].[Table1]    SET [Field1]  = 'NewValue'   WHERE [Field2] = 'Condition';

 UPDATE [dbo].[Tab2]       SET [Field2]  = 'New'            WHERE [F1]       = 'Condition2';

 UPDATE [dbo].[Tab3]       SET [Field5]  = 'Update Val' WHERE [Fld1]    = 'Condition2';

Above simple alignment steps help us in changing values horizontally (using Shift + Alt and then up or down arrow).
I used Microsoft SQL Server Management Studio (SQL Server Management Solutions, SQL Server Management Studio Projects).
